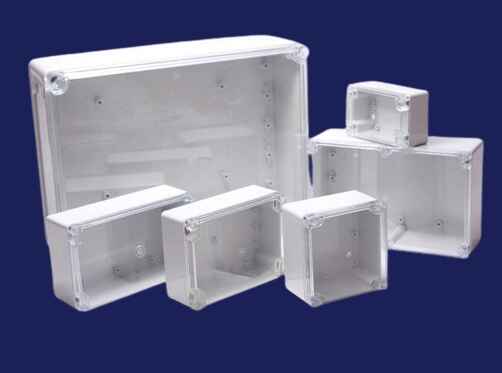

Polyester Enclosure (Junction Box)

Our polyester enclosures are targeted at highly demanding industrial conditions due to their excellent temperature resistance, high impact strength, and unyielding construction. They are accredited with IP 66 enclosure safety which makes them dustproof and waterproof.

Polyester enclosures are made of glass-reinforced polyester and are remarkably durable. They can substitute stainless steel enclosures in challenging conditions. The cost-effective polyester enclosing solution used is UV- resistant, has self-extinguishing (i.e. Flameproof) qualities and is halogen-free. The enclosures/Junction box can be used in different settings and application areas such as aquatic, metering and control, renewable energies as well as water and wastewater treatment.

Why we use glass fibre reinforced polyester (FRP) for Enclosure aka Junction boxes:

  • Lightweight and easy to handle
  • Sturdy and durability
  • Aesthetically pleasant
  • Outstanding detailing capabilities
  • Plastic and versatile
  • Extended service life
  • Flameproof
  • UV resistant
  • Easy to repair
  • Recyclable at end of service life (if provided by the responsible manufacturer)

Environmental benefits of glass fibre reinforced polyester (GRP) enclosures:

As GRP (a type of FRP) is safe to use and does not emit any chemicals once set, it is a favoured material for eco-friendly enclosure option for the environment-conscious world. This determinant is shifting the opinions to consider with current move toward 'greener' methods and materials. Keeping in mind the bigger picture of global warming and the projected increase in yearly droughts and water shortages.

At the end, it's important to use material that serves long and gives service that can curb the waste material problem from the face of the earth!

Glass-reinforced polyester can be broken down into its component materials, which can then be recycled into new materials, additionally saving the customer money and serving the environment.

Polyester Enclosures Junction Boxes:

VS-785PS 75 x 80 x 55 mm
VS-787PS 75 x 80 x 75 mm
VS-7115PS 75 x 110 x 55 mm
VS-7117PS 75 x 110 x 75 mm
VS-7165PS 75 x 160 x 55 mm
VS-7167PS 75 x 160 x 75 mm
VS-12129PS 120 x 122 x 90 mm
VS-12229PS 120 x 220 x 90 mm
VS-16169PS 160 x 160 x 90 mm
VS-16269PS 160 x 260 x 90 mm
VS-252516PS 250 x 255 x 160 mm
VS-404012PS 405 x 400 x 120 mm
VS-404020PS 405 x 400 x 200 mm

Technical Specifications:

  • Material : Glass fibre reinforced polyester
  • Color : RAL 7001 (Grey), RAL 9005 (Black)
  • Ingress Protection : IP 67/ DIN EN 60529
  • Temperature Resistance : CR (chloroprene) seal 40 °C to 100°C
  • Flammability : V0 / self-extinguishing, UL 94
  • Impact Resistance : 7 Joule to EN 60079-0
  • Surface Resistance : >1012 Ohm to IEC 60093
