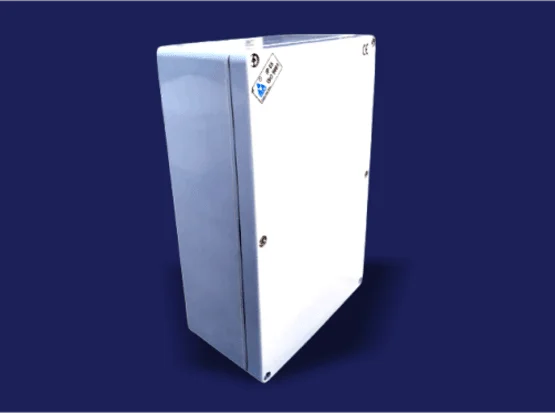

ABS Enclosure (Junction Box)

We offer premium quality ABS Enclosures (Junction Boxes) that is manufactured from quality raw materials to ensure its durability and utility. We also meet customized requirement and offer our range at industry leading prices.

Advantages of ABS Plastic Enclosures:

  • ABS plastic is easy to machining with standard tools.
  • Colouring is easy through pigmentation.
  • ABS provides good resistance to chemical attack. Because of its strength, ABS also has a long lifespan.
  • It has excellent insulating properties.
  • ABS is a two-phase polymer blend that produces a good all-around performance for electronic enclosures. For the reason, ABS is used in most cases in our ABS range. It is best suited for use in enclosed places.
  • ABS can be used as low temperatures as -5°C.
  • It is typically polymerized through the emulsion, though a lot of ABS plastic is formed through the recycling of other ABS plastic. This adaptability makes it an excellent material for recycling. It can go through several processes of recycling without significant degradation.

Specifications:

  • Type : Junction Box, Distribution Box
  • Material : ABS
  • External Size : 200*100*70

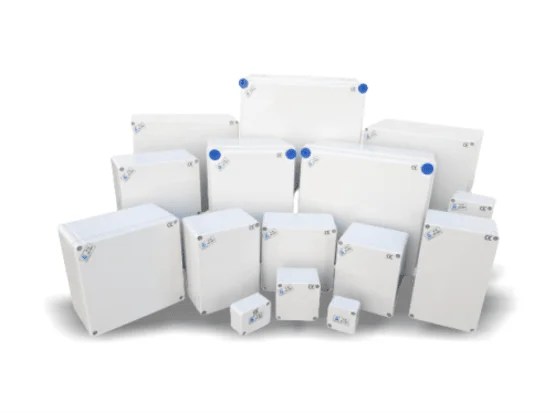

ABS Enclosure (Junction Box) Sizes:

VS-553AS 50x52x35 mm
VS-563AS 50x65x35 mmm
VS-885AS 80x82x55 mm
VS-888AS 80x82x85 mm
VS-815AS 80x120x55 mm
VS-80165AS 80x160x55 mm
VS-80215AS 80x210x55 mm
VS-818AS 80x120x85 mm
VS-101060AS 100x100x60 mm
VS-101080AS 100x100x80 mm
VS-117AS 122x125x75 mm
VS-121470AS 120x140x70 mm
VS-121410AS 120x140x100 mm
VS-127AS 120x200x75 mm
VS-129AS 120x200x90 mm
VS-121765AS 125x170x65 mm
VS-121785AS 125x170x85 mm
VS-151575AS 150x150x75 mm
VS-151510AS 150x150x100 mm
VS-1259AS 160x250x90 mm
VS-12515AS 160x250x115 mm
VS-253085AS 250x300x85 mm
VS-253011AS 250x300x110 mm
VS-253015AS 250x300x150 mm
VS-253017AS 250x300x170 mm
VS-304014 AS 300 x 400 x 140 mm

Technical Specifications:

  • Protection Spec: IP 65 acc DIN EN 60529 / DIN 40050.
  • Material : ABS (UV Resistance)
  • Rubber Seal : Foamed Neoprene Seal
  • Color : Light Gray (RAL 7035) (Special colors on request)
  • Installation Temperature : -5°C to 80°C
  • Temperature Resistance : max 100°C 60695 10-2
