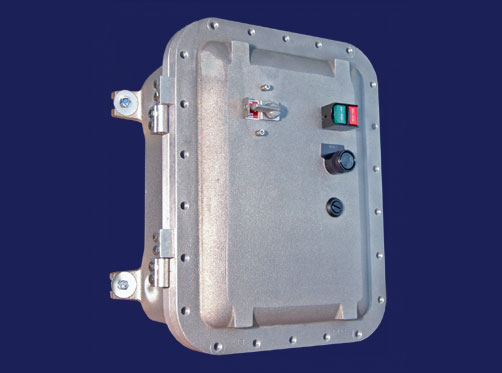

Flameproof Enclosure Manufacturer

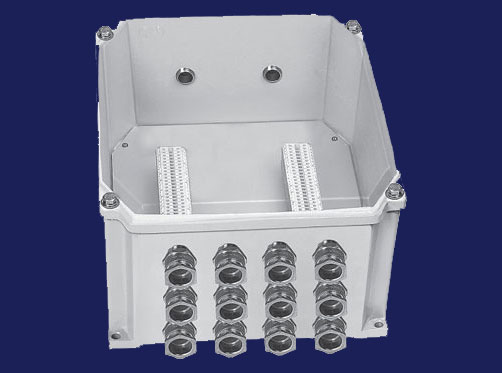

Since 2006, VSM Plast is a flameproof junction box manufacturer based in the industrial city of Pune and a wide range of plastic and die-cast flameproof junction box supplier for industrial and commercial building uses.

The flameproof enclosure series form the basis for the design of control and distribution solutions for hazardous areas: from small terminal boxes through control stations to advanced control and distribution panels for complex machinery and major applications.

The explosion protection type Ex d and Ex tb enable the use of instrumentation not intended for dangerous environments in gas or dust explosion dangerous areas as well as in harsh or caustic atmospheres.

Appropriately certified operating elements covering several control functions can be integrated. Thus, users benefit from the huge variety of electrical or process automation functions which can be utilized in demanding industrial applications. The many instrument housings of the VSM Plast series are used for the explosion-protected operation of small electronic devices or signal converters.

What is a flameproof enclosure (Junction Box)?

When people hear flameproof enclosure, they confused it with fire resistant but it actually represents the protection from explosions that befall within the enclosure, it will either contain the escaping flames or mitigate the risk of igniting an explosion outside of the box by providing a cooling path to flames.

When it comes to so-called flameproof enclosures there is a lot of confusion. Ex d or flameproof means that an enclosure or junction box manufacturer is certified to the construction of explosion protected according to flameproof standards.

On the other hand, Ex e denotes that enclosure supplier is certified to explosion protected in accordance with increased safety standards. Ex e increased safety boxes are normally manufactured from engineered plastic and are generally suitable for surface applications. Ex e is usually a less expensive method of protection than ex d. You can contact us for more information on plastic enclosures or can send inquiry for quotes.

Technical Specifications:

  • Material: Die-cast aluminium
  • Ingress Protection: IP 67
  • Outlet hole threads : G-3/4"
  • Atmospheric pressure : 80 to 110 KPa
  • Color : Light Gray (RAL 7035) (Special colors on request)
  • Installation Temperature : -5 ℃ to 80 ℃
  • Temperature Resistance : max 100 ℃
  • Ambient temperature : -40 to +60 ℃
  • Anti explosion degree : EX D-II BT6 DIP A20 TA T6
  • Weight : 3 kg
  • Installation : Wall mounted
  • Voltage : AC 220V - AC 380V
  • Relative humidity : Less than 95%
  • Price:₹ 185/no
