Cable Gland Supplier

We’re supplier & manufacturer of a wide range of optimum quality Cable Glands like PVC Cable gland, nylon cable gland etc. we have been able to meet the specific needs of clients in the most efficient manner. We also provide assembly services to our clients.

We are a trustworthy organization in the market, actively engrossed in offering a wide gamut of PVC Cable Glands. We manufacturer and supply our products in Pune, Maharashtra, India.

The lamellar construction of VSM Plast Cable Glands

The lamellar construction of VSM Plast Cable Glands renders a very strong grip on the cable granting true strain relief. Available in straight, elbow, spiral & cone type of constructions, these Cable Glands are made from Polyamide, Nylon & PVC thermoplastic materials to suit varied sealing and termination applications. These IP65 rated, dustproof & waterproof Cable Glands are available with standard thread types PG, Metric & NPT.

These cable glands accredited with VDE, UL, CSA & CE certifications to further testify that we at VSM Plast remain committed to providing cable glands with the best safeguards to protect your electrical & telecommunications cables. To ensure waterproof cable glands our manufacturing process follows EN 50262 specification & with easy construct offer great strain relief with a broad clamping range. The lamellar construction of glands provides an exceptional grip on the cable. On request, we supply the cable glands with reduced clamping range.

Cable Gland Details:

  • Cable glands are ideally suited for use where a number of wires are to be passed through a single panel port or machine part
  • Cable glands are crack resistant
  • It is specially designed teeth for effective gripping
  • Available in different colors

Features:

  • High-quality
  • Durable
  • Efficient
What is the difference between PG and Metric Glands?

Technical Specifications:

Cable Glands - PG
Model Cable Dia Hole Dia
PG7 3-6.5mm 12.5mm
PG9 4-8mm 15.2mm
PG11 5-10mm 18.6mm
PG13.5 6-12mm 20.4mm
PG16 10-14mm 22.5mm
PG21 13-18mm 28.3mm
PG25 16-21mm 30mm
PG29 18-25mm 37mm
PG36 22-32mm 47mm
PG42 28-38mm 54mm
PG48 35-45mm 59.3mm
PG63 42-50mm 72mm

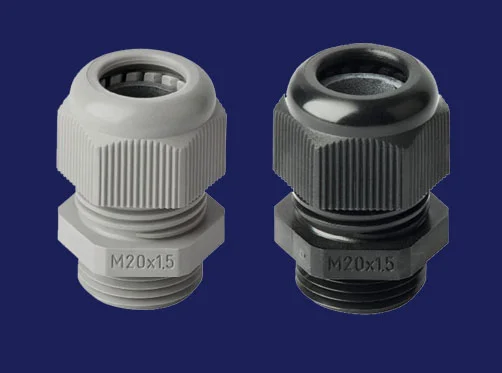

Cable Glands - Metric
Model Cable Dia Hole Dia
M12 3-6mm 12mm
M16 5-10mm 16mm
M20 8-13mm 20mm
M25 11-17mm 25mm
M32 15-21mm 32mm
M40 19-28mm 40mm
M50 25-35mm 50mm
M63 35-45mm 63mm

Product Details:

  • Material: Polyamide, Nylon, PVC
  • Flammability : UL 94 V2
  • Colour : RAL 7001 (Grey), RAL 9005 (Black), RAL 7035 (L.Grey) on request
  • Protection Class : IP 65-5 Bar
  • Sealing Ring : CR- Silicon, PVC Rubber
  • Temperature Range : -20 C to +100 C Continuous,-30 C to +150 C
  • Approvals : VDE, UL, CSA & CE
  • Price:₹ 2/no
