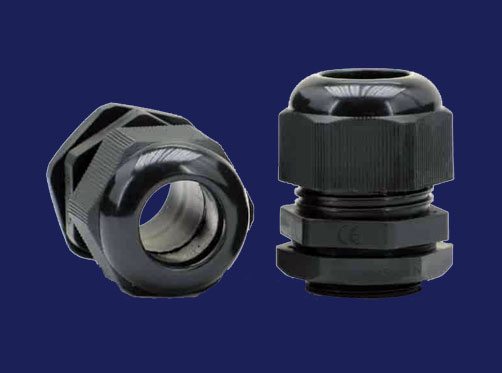

Nylon Cable Gland

We’re supplier & manufacturer of a wide range of Nylon Cable Glands are available in PG, Metric standards with standard mounting threads or long mounting threads.

Advantages of Nylon Cable Glands:

  • Nylon cable gland can bear the highest IP rating, about as high as IP68.
  • Nylon cable gland has a flammability rating of UL94 V0, which is the safety standard of flammability and, in the event of a fire, it will stop within 10 seconds, on a vertical specimen.
  • Specifically designed resist to UV rays deterioration in outdoor applications.
  • Has a high rate of strain relief and a broad operating temperature range from -40 C to 100 C.

Cable fittings, connectors, or glands may appear to be a small thing to think about. And the small things that actually deliver the most fitting and prudent solutions. When it comes to cabling requirements, be it data cables or electrical cables, don’t forget cable glands — and think nylon.

Technical Specifications:

Cable Glands - PG
Model Cable Dia Hole Dia
PG7 3-6.5mm 12.5mm
PG9 4-8mm 15.2mm
PG11 5-10mm 18.6mm
PG13.5 6-12mm 20.4mm
PG16 10-14mm 22.5mm
PG21 13-18mm 28.3mm
PG25 16-21mm 30mm
PG29 18-25mm 37mm
PG36 22-32mm 47mm
PG42 28-38mm 54mm
PG48 35-45mm 59.3mm
PG63 42-50mm 72mm
Cable Glands - Matrix
Model Cable Dia Hole Dia
M12 3-6mm 12mm
M16 5-10mm 16mm
M20 8-13mm 20mm
M25 11-17mm 25mm
M32 15-21mm 32mm
M40 19-28mm 40mm
M50 25-35mm 50mm
M63 35-45mm 63mm
