Polycarbonate Enclosure Manufacturer

Polycarbonate Enclosure
Polycarbonate Enclosure

Polycarbonate Enclosure Supplier

Since 2006, VSM Plast is a premium polycarbonate enclosure manufacturer and supplier in electrical applications requiring corrosion resistance, insulation, ease of installation and a competitive price. Our quality polycarbonate thermoplastic is the ideal material for various types of enclosures, with uses such as electrical construction, water treatment, solar power, telecommunications, instrumentation, HVAC, and more.

Polycarbonate Enclosures have very good aesthetic looks and are rugged when come to use.

Preferring a polycarbonate enclosure to meet your needs is as simple as considering the material and chemical demands of your application, selecting the right size and then customizing as much as necessary for end-use. Find the right enclosure that matches the size and protection rating your project mandates.

Polycarbonate enclosures serve the next step in the evolution of technology for outdoor, wireless, wastewater treatment, solar, broadband over powerline (BPL), smart grid, and all the traditional non-metallic applications.

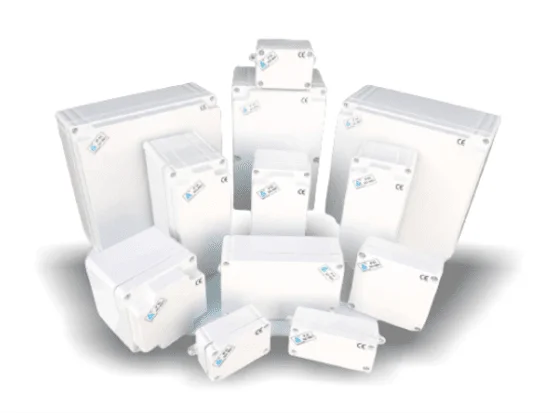

We manufacture premium quality Polycarbonate Enclosures (Junction Boxes) like Industrial Polycarbonate Enclosures and Wall Mount Polycarbonate Enclosure. These are quality tested on well defined parameters before being delivered to our clients. We also meet customized requirement and offer our range at industry leading prices.

The Unsurpassed Advantages of Polycarbonate Enclosures:

  • These thermoplastic enclosure gives you three-way advantages.
  • UV Protection, Impact Resistance & Ease of Modification.

UV Protection & a Wide Range Of Temperature Limits:

In outdoor environments where enclosures are exposed to prolonged UV exposure can cause fiber-bloom on fiberglass enclosures a form of surface degeneration that appears in loss of color and gloss. This is unnecessary with VSM Plast polycarbonate enclosures.

Our installation has the operating temperature of as low as - 5 deg C and as high as up to 100 deg C and can operate a maximum temperature of 120 deg C.

Shock Resistance:

Our polycarbonate enclosures have strikingly better impact resistance which arises from high dimensional stability of our thermoplastic.

Ease of Modification:

Polycarbonate enclosures are much easier and safer for machining, with none of the powder and splintering linked with fiberglass.

Technical Specifications:

  • Protection Spec: IP 65 acc DIN EN 60529 / DIN 40050.
  • Material : Polycarbonate (UV Resistance)
  • Rubber Seal : Foamed Neoprene Seal
  • Color : Light Gray (RAL 7035) (Special colors on request)
  • Installation Temperature : - 5째C to 100째C (Polycarbonate)
  • Temperature Resistance : max 120째C
  • Polycarbonate Enclosure Price:₹ 120/no

Get A Quote

Polycarbonate Enclosures Junction Boxes:

Sr No. Product Size (LxWxH/Depth)
1 VS-553PC 50 x 52 x 35 mm
2 VS-563PC 50 x 65 x 35 mm
3 VS-805635PC 80 x 56 x 35 mm
4 VS-805655PC 80 x 56 x 55 mm
5 VS-808240PC 80 x 82 x 40 mm
6 VS-808245PC 80 x 82 x 45 mm
7 VS-808250PC 80 x 82 x 50 mm
8 VS-885PC 80 x 82 x 55 mm
9 VS-808280PC 80 x 82 x 80 mm
10 VS-888PC 80 x 82 x 85 mm
11 VS-501035PC 50 x 100 x 35 mm
12 VS-501060PC 50 x 100 x 60 mm
13 VS-801235PC 80 x 120 x 35 mm
14 VS-815PC 80 x 120 x 55 mm
15 VS-818PC 80 x 120 x 85 mm
16 VS-901365PC 90 x 130 x 65 mm
17 VS-80165PC 80 x 160 x 55 mm
18 VS-801670PC 80 x 160 x 70 mm
19 VS-801685PC 80 x 160 x 85 mm
20 VS-801610PC 80 x 160 x 100mm
21 VS-801855PC 80 x 180 x 55mm
22 VS-801870PC 80 x 180 x 70mm
23 VS-801885PC 80 x 180 x 85mm
24 VS-801810PC 80 x 180 x100mm
25 VS-80215PC 80 x 210 x 55 mm
26 VS-802360PC 80 x 230 x 60mm
27 VS-802385PC 80 x 230 x 85 mm
28 VS-802375PC 80 x 230 x 75 mm
29 VS-802310PC 80 x 230 x 100 mm
30 VS-101040PC 100 x 100 x 40 mm
31 VS-101060PC 100 x 100 x 60 mm
32 VS-101080PC 100 x 100 x 80 mm
33 VS-101010PC 100 x 100 x 100 mm
34 VS-121255PC 122 x 125 x 55 mm
35 VS-117PC 122 x 125 x 75 mm
36 VS-101550PC 100 x 150 x 50 mm
37 VS-101570PC 100 x 150 x 70 mm
Sr No. Product Size (LxWxH/Depth)
38 VS-121455PC 120 x 140 x 55 mm
39 VS-121470PC 120 x 140 x 70 mm
40 VS-121410PC 120 x 140 x 100 mm
41 VS-122055PC 120 x 200 x 55 mm
42 VS-127ASPC 120 x 200 x 75 mm
43 VS-129PC 120 x 200 x 90 mm
44 VS-121750PC 125 x 170 x 50 mm
45 VS-121765PC 125 x 170 x 65 mm
46 VS-121785PC 125 x 170 x 85 mm
47 VS-121710PC 125 x 170 x 100 mm
48 VS-151575PC 150 x 150 x 75 mm
49 VS-151510PC 150 x 150 x 100 mm
50 VS-152080PC 155 x 205 x 80 mm
51 VS-181860PC 180 x 180 x 60 mm
52 VS-181875PC 180 x 180 x 75 mm
53 VS-181810PC 180 x 180 x 100 mm
54 VS-181811PC 180 x 180 x 115 mm
55 VS-212160PC 210 x 210 x 60 mm
55 VS-212190PC 210 x 210 x 90 mm
57 VS-212175PC 210 x 210 x 75 mm
58 VS-212105PC 210 x 210 x 105 mm
59 VS-142260PC 140 x 225 x 60 mm
60 VS-142275PC 140 x 225 x 75 mm
61 VS-142290PC 140 x 225 x 90 mm
62 VS-142210PC 140 x 225 x 105 mm
63 VS-162560PC 160 x 250 x 60 mm
64 VS-1259PC 160 x 250 x 90 mm
65 VS-12515PC 160 x 250 x 115 mm
66 VS-192813PC 190 x 280 x 130 mm
67 VS-253085PC 250 x 300 x 85 mm
68 VS-253011PC 250 x 300 x 110 mm
69 VS-253015PC 250 x 300 x 150 mm
70 VS-253017PC 250 x 300 x 170 mm
71 VS-282813PC 280 x 280 x 130 mm
72 VS-304014PC 300 x 400 x 140 mm
77 VS-304018PC 300 x 400 x 180 mm
74 VS-304021PC 300 x 400 x 210 mm
